Apple-slang

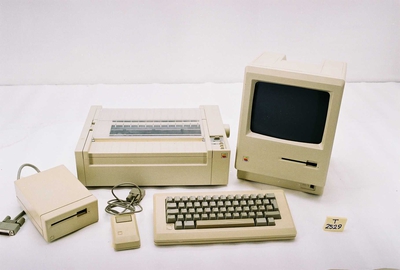

Prosessor: Motorola 68000, 7,83 MHz.
32 bits databuss. 1 MB RAM. 128 kb ROM.
800 kb 3,5 " diskettsstasjon.
9 " 512 x 342 punkters matriseskjerm.

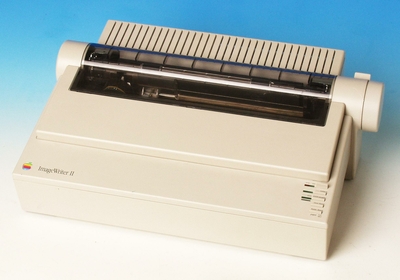

Tillegg: skriver, 20 MB harddisk.
Programvare:
Tekstbehandling
Database
Kalkyler
Diagram og grafikk
kommunikasjon

Collapse text

Fra apple-history.com:

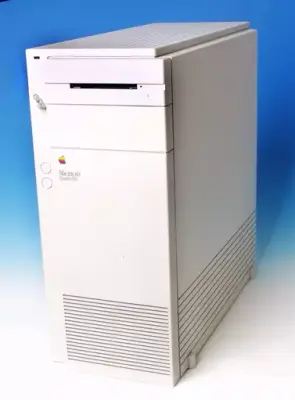

Codename: Amazon, Zydeco
CPU: MC68040
CPU speed: 33 Mhz
FPU: integrated
motherboard RAM: 0 MB
maximum RAM: 256 MB
number of sockets: 16 -- 30 pin SIMM
minimum speed: 80 ns
VRAM: 1 MB - 2 MB (4 sockets)
ROM: 1 MB
L1 cache: 8 k
L2 cache: n/a
data path: 32 bit
bus speed: 33 Mhz
slots: 5 NuBus, 1 PDS
SCSI: DB-25
Serial Ports: 2
ADB: 2
Floppy: 1.4 MB SuperDrive
HD: 230 Mb-1.0 GB
CD-ROM: 2x
Display: resolutions up to 1152x870
Sound Output: stereo 8 bit
Sound Input: mono 8 bit
Ethernet: AAUI-15
Gestalt ID: 26
power: 303 Watts
Weight: 36.8 lbs.
Dimensions: 18.6" H x 8.9" W x 20.6" D
Min System Software: 7.1
Max System Software: 8.1
introduced: May 1992
terminated: October 1995

Announced in May 1992, the Quadra 950 was a "speed bump" of the Quadra 900. The processor was upgraded from a 25 Mhz 68040 to a 33 Mhz. The Quadra 950 sold for $7,200.
